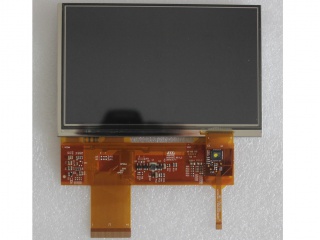

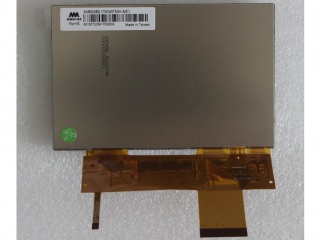

| PartZenbakia | AM-800480L1TMQW-TN0H-A |
| Marka | AMPIRE |
| Tamaina | 5.0 |
| Aplikazio | Industrial |
| Ebazpena | 800×480 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 250:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | Parallel |
| marka | AMPIRE |
| eredua | AM-800480L1TMQW-TN0H-A |
| diagonalaren tamaina | 5.0 inch |
| mota | a-Si TFT-LCD, LCM |
| pixel formatua | 800(RGB)×480 [WVGA] 188PPI |
| konfigurazioa | RGB Vertical Stripe |
| eremu aktiboa | 108(H)×64.8(V) mm |
| eskema dim. | 118.5(H)×74(V) ×5.01(D) mm |
| bezela eremua | 110.6(H)×67.4(V) mm |
| tratamendua | Antiglare |
| luminantzia | 360 cd/m² (Typ.) |
| kontraste-erlazioa | 250:1 (Typ.) (TM) |
| ikusi norabidea | 6 o'clock |
| erantzun denbora | 15/35 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/70/50 (Typ.)(CR≥10) |
| funtzionamendu modua | TN, Normally White, Transmissive |
| euskarria kolorea | 16.7M 52% NTSC |
| argi iturria | WLED [3S6P] , W/O Driver |
| pisua | - |
| entzat diseinatua | Industrial |
| fotograma-tasa | 60Hz |
| ukipen-panela | PCAP |
| interfaze mota | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| energia hornidura | 3.3V (Typ.) |
| ingurunea | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| A050AVV50R0 | Aptus | 5.0 | 800×480 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| LB050WQ2-TD03 | LG Display | 5.0 | 480×272 |
| LB050WQ3-TD04 | LG Display | 5.0 | 480×272 |
| LD050WV1-SP01 | LG Display | 5.0 | 480×800 |
| LMS500HF13-003 | Samsung | 5.0 | 480×272 |
| LTE052T-4301-1 | TPO | 5.0 | 320×234 |
| LTG500QV-F03 | Samsung | 5.0 | 320×240 |
| P50AD4 | E Ink | 5.0 | 320×234 |
| TFD50W52MS3 | TOSHIBA | 5.0 |
