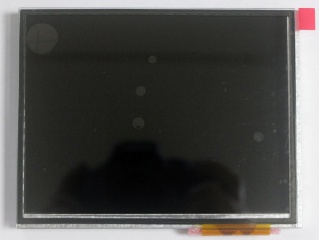

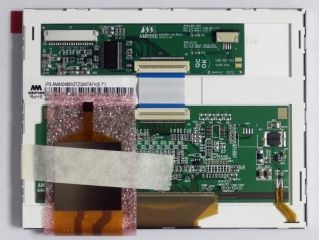

| PartZenbakia | AM-640480V2TZQW-TA7H |
| Marka | AMPIRE |
| Tamaina | 5.7 |
| Aplikazio | Industrial Outdoor H |
| Ebazpena | 640×480 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 1200:1 |
| Koloreak | 262K |
| Atzeko argia | 4S7P |
| Interfazea | LVDS |
| panel marka | AMPIRE |
| panel eredua | AM-640480V2TZQW-TA7H |
| panelaren tamaina | 5.7" |
| panel mota | a-Si TFT-LCD, LCM |
| ebazpena | 640(RGB)×480, VGA, 141PPI |
| pixel formatua | RGB Vertical Stripe |
| bistaratzeko eremua | 115.2(W)×86.4(H) mm |
| bezela irekidura | - |
| eskema tamaina | 127(W)×98.43(H) ×10.88(D) mm |
| azalera | - |
| distira | 850 cd/m² (Typ.) |
| kontraste-erlazioa | 1200:1 (Typ.) (TM) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10) |
| bistaratzeko modua | IPS, Normally Black, Transmissive |
| ikuspegirik onena | Symmetry |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| bistaratzeko koloreak | 262K 60% NTSC |
| lanpara mota | 4S7P WLED , 50K hours , With LED Driver |
| maiztasuna | 60Hz |
| pantaila taktila | PCAP |
| panelaren pisua | - |
| aplikazio | Industrial Outdoor High Brightness |
| seinale interfazea | LVDS (1 ch, 6-bit) , 20 pins Connector |
| sarrerako tentsioa | 3.3V (Typ.) |
| ingurunea | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
