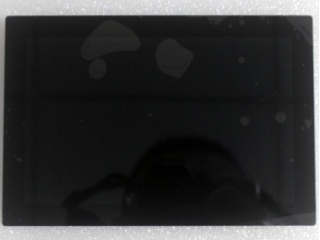

| PartZenbakia | AM-1280800P4TZQW-T21H |
| Marka | AMPIRE |
| Tamaina | 7.0 |
| Aplikazio | Industrial |
| Ebazpena | 1280×800 |
| Konposizioa | a-Si TFT-LCD, LCM |
| Distira | |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| marka | AMPIRE |
| eredua | AM-1280800P4TZQW-T21H |
| diagonalaren tamaina | 7.0 inch |
| mota | a-Si TFT-LCD, LCM |
| pixel formatua | 1280(RGB)×800 [WXGA] 217PPI |
| konfigurazioa | RGB Vertical Stripe |
| eremu aktiboa | 149.76(H)×93.6(V) mm |
| eskema dim. | 174(H)×118(V) ×13.63(D) mm |
| bezela eremua | - |
| tratamendua | Glare (Haze 0%) |
| luminantzia | 850 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) (TM) |
| ikusi norabidea | Symmetry |
| erantzun denbora | 35 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10) |
| funtzionamendu modua | SFT, Normally Black, Transmissive |
| euskarria kolorea | 16.7M 50% NTSC |
| argi iturria | WLED [6S4P] , 50K hours , With LED Driver |
| pisua | - |
| entzat diseinatua | Industrial |
| fotograma-tasa | 60Hz |
| ukipen-panela | PCAP |
| interfaze mota | LVDS (1 ch, 8-bit) , 20 pins Connector |
| energia hornidura | 3.3V (Typ.) |
| ingurunea | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
