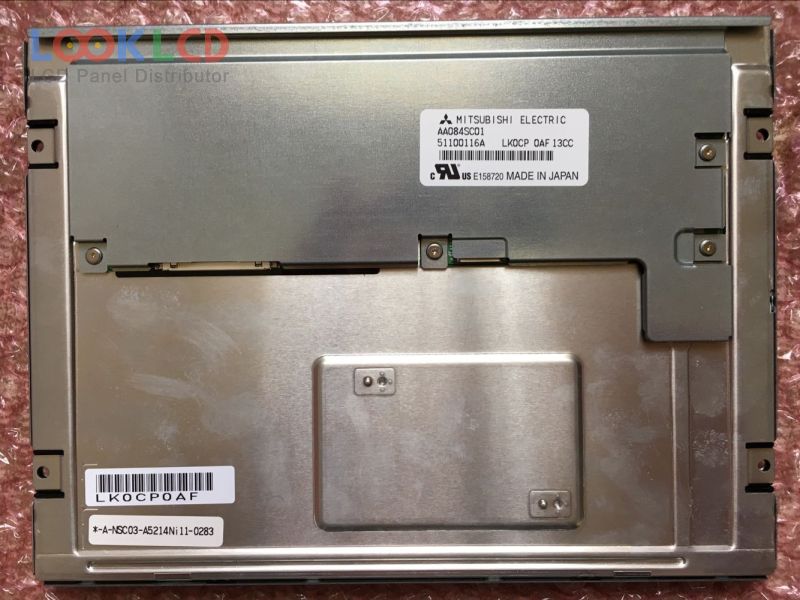

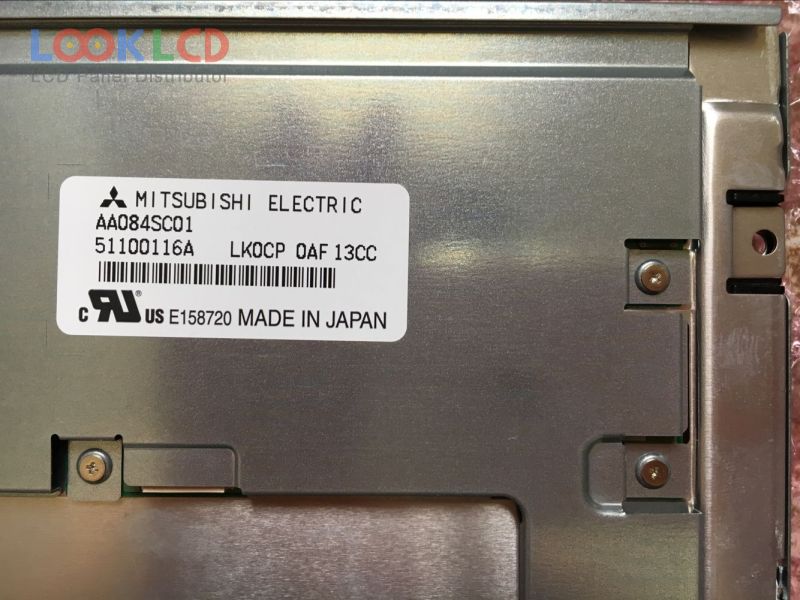

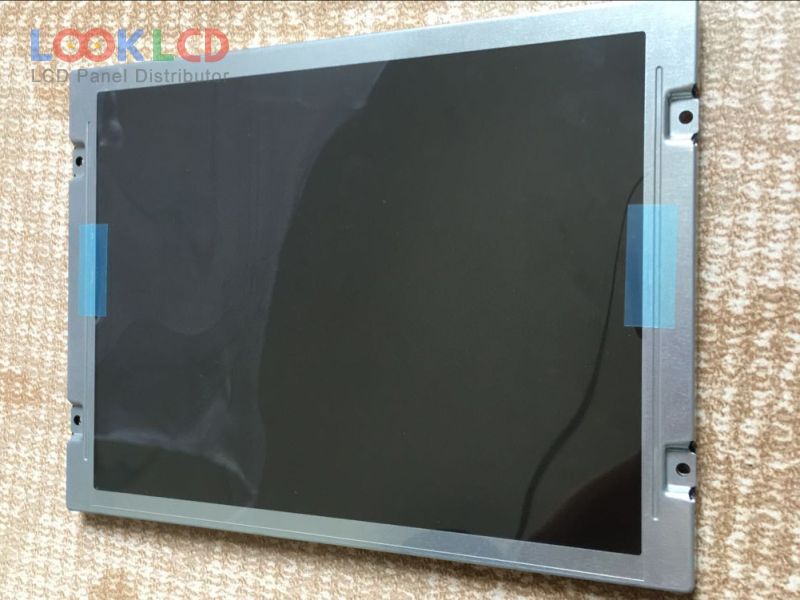

| PartZenbakia | AA084SC01 |
| Marka | Mitsubishi |
| Tamaina | 8.4 |
| Aplikazio | IA |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 600 |
| CR | 1000:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | Mitsubishi |
| panel eredua | AA084SC01 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.4 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | IPS, Normally Black, Transmissive |
| eremu aktiboa | 170.4×127.8 mm |
| eskema | 199.5×149 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 600 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| erantzun denbora | 12/12 (Typ.)(Tr/Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
| AA084SB01 | Mitsubishi | 8.4 | 800×600 |
| AA084SC01 | Mitsubishi | 8.4 | 800×600 |
| AA084SD01 | Mitsubishi | 8.4 | 800×600 |
| AA084SD11 | Mitsubishi | 8.4 | 800×600 |
| AA084VB01 | Mitsubishi | 8.4 | 640×480 |
| AA084VB02 | Mitsubishi | 8.4 | 640×480 |
| AA084VC05 | Mitsubishi | 8.4 | 640×480 |
| AA084VG01 | Mitsubishi | 8.4 | 640×480 |
| AA084XB11 | Mitsubishi | 8.4 | 1024×768 |
| AA084XE11 | Mitsubishi | 8.4 | 1024×768 |
| AA104VC10 | Mitsubishi | 10.4 | 640×480 |
| AA121SU01 | Mitsubishi | 12.1 | 800×600 |
| DMF-50773NB-FW | Kyocera | 5.4 | 240×128 |
| LB064V02-TD01 | LG Display | 6.4 | 640×480 |
| LB104V03-A1 | LG Display | 10.4 | 640×480 |
| LQ084V1DG21E | SHARP | 8.4 | 640×480 |
| NL10276BC24-19D | NLT | 12.1 | 1024×768 |
| NL6448AC33-29 | NLT | 10.4 | 640×480 |
| NL6448BC26-11 | NLT | 8.4 | 640×480 |
| TM057KDH01 | Tianma | 5.7 | 320×240 |
